ViT, explained · Part 2 of 2 · Covers §2, §3.1, Figure 1, Eq. 1 to 4, Appendix A

Inside ViT: Patches, Embeddings and the Encoder

Section 2, Figure 1, Section 3.1 and Appendix A, line by line: the earlier attempts to put attention on images, then every step from a 224×224 picture to a class label, with Equations 1 to 8 recomputed by hand on the released ViT-B/16 and matched against the library at every stage, the 86,567,656 parameters counted exactly, and a four-token attention example small enough to check with a pencil.

An Image is Worth 16x16 Words: Transformers for Image Recognition at Scale. Alexey Dosovitskiy, Lucas Beyer, Alexander Kolesnikov, Dirk Weissenborn, Xiaohua Zhai, Thomas Unterthiner, Mostafa Dehghani, Matthias Minderer, Georg Heigold, Sylvain Gelly, Jakob Uszkoreit, Neil Houlsby. ICLR 2021, 2020. arXiv:2010.11929

In Part 1 we read the paper's claim: cut a picture into 16×16 patches, feed them to an unchanged Transformer, and with enough data it beats the best convolutional networks. This part opens the model. First we read Section 2, the earlier work the paper builds on and argues against. Then Figure 1 and Section 3.1, which describe the model in one picture, four equations and a few paragraphs. Last we read Appendix A, the attention equations the paper hands to its appendix.

Everything that can be checked, we check on a released model, google/vit-base-patch16-224 (ViT-B/16, pre-trained on ImageNet-21k and fine-tuned on ImageNet at 224 pixels), with one real picture of two cats. Every step of the model is recomputed in plain PyTorch and compared with the library's own output.

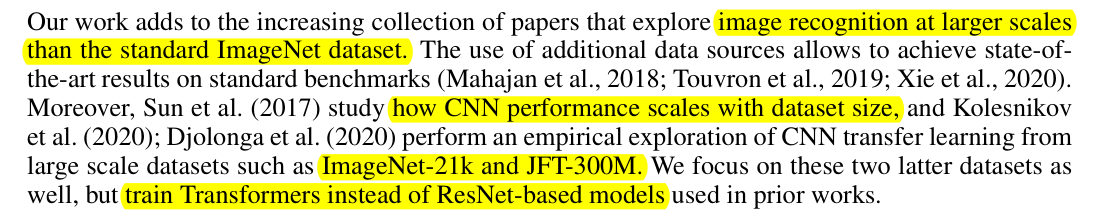

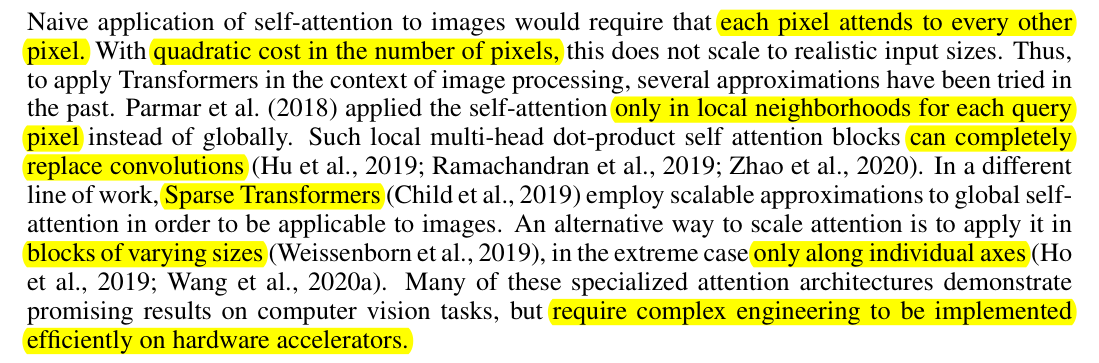

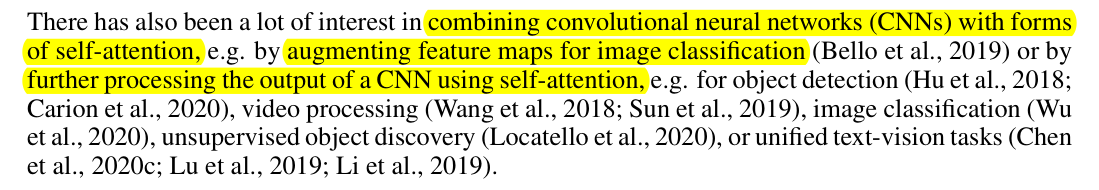

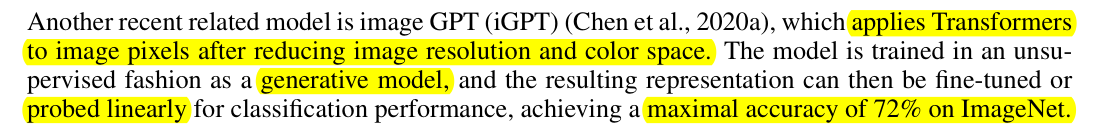

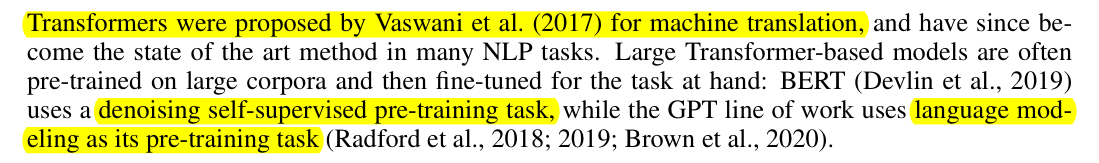

Related work: attention on images before ViT#

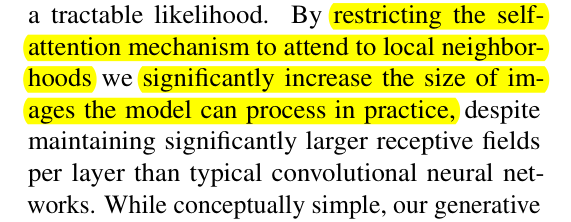

Two of these ideas are worth seeing in their own papers. Here is Parmar et al. (2018), the Image Transformer, saying in its abstract why it went local:

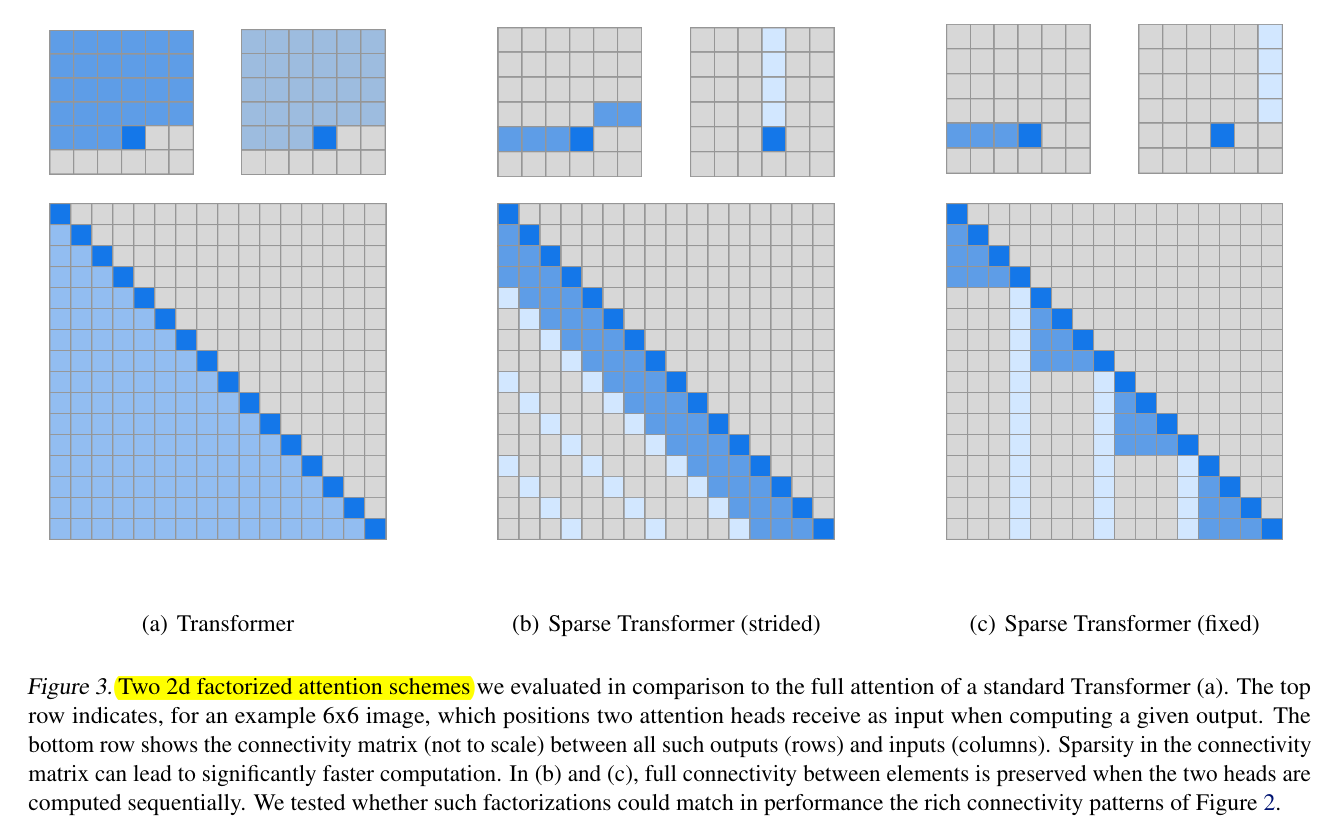

And here are the patterns of the Sparse Transformer, which the ViT paper names explicitly:

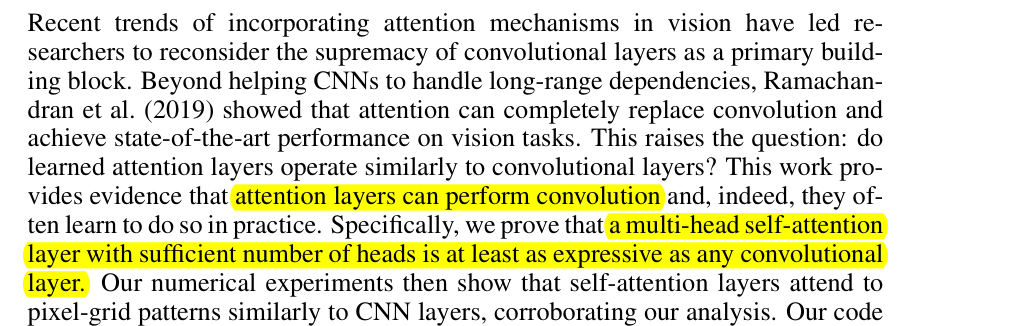

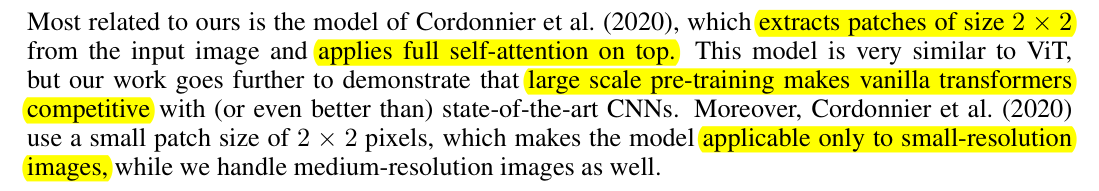

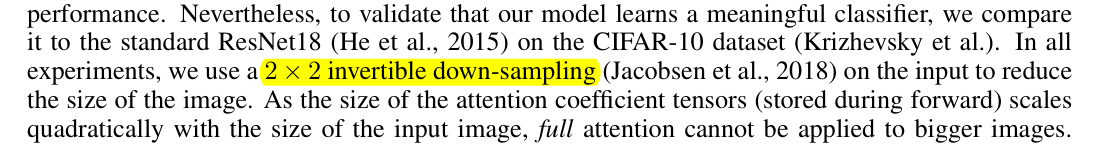

The Cordonnier paper is about something else: it proves that attention can do what a convolution does, and shows that trained attention layers often learn to. Its 2×2 step appears in the experiments as a down-sampling detail:

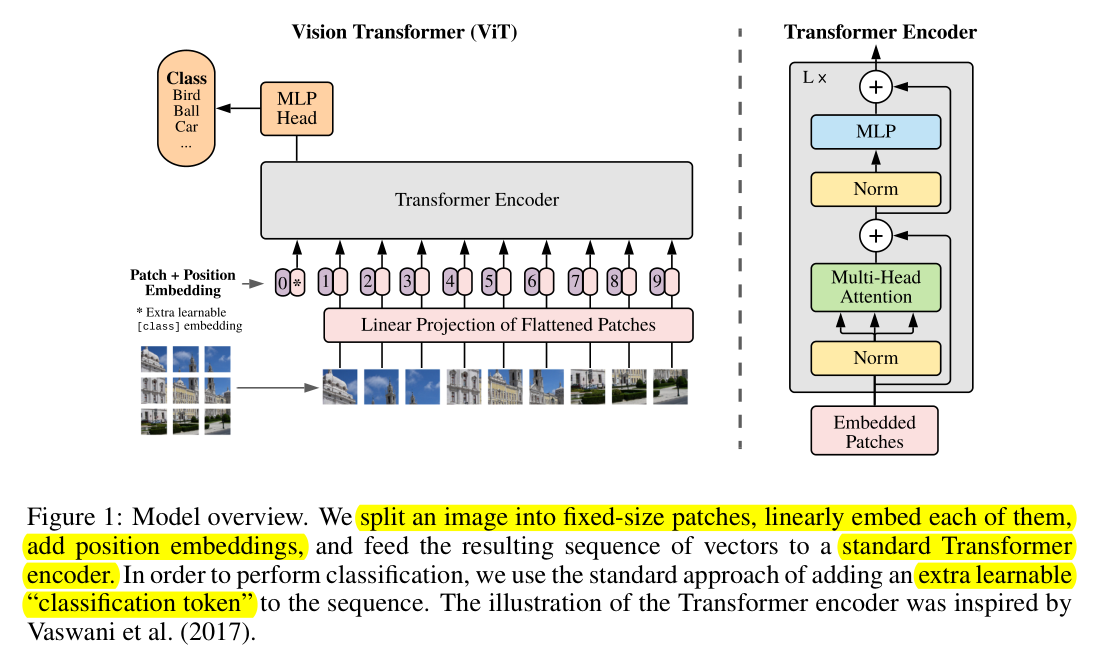

Figure 1: the whole model in one picture#

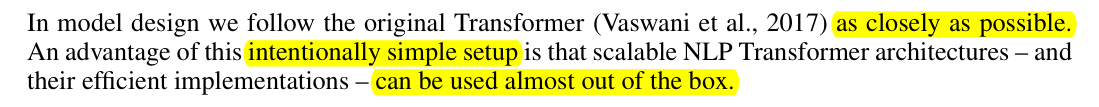

Section 3 is short. It opens with one sentence of design philosophy and one picture, Figure 1. Here is the picture first, because everything else in this part explains one piece of it.

How to read Figure 1, left to right and bottom to top:

• Bottom left, the picture: split into a grid of patches (nine in the drawing; 196 for a real 224×224 picture with 16×16 patches).
• "Linear Projection of Flattened Patches" (pink bar): each patch is flattened into one long row of numbers and multiplied by one matrix, $\mathbf{E}$. Every patch uses the same matrix.
• "Patch + Position Embedding" (the circles 0 to 9): to each projected patch a learned position vector is added, so the model can tell patch 3 from patch 7. The starred circle 0 is the "extra learnable [class] embedding": a token that belongs to no patch.
• "Transformer Encoder" (grey box): the standard encoder, $L$ layers of it. Every token can look at every token.
• "MLP Head" and "Class": only the output at position 0, the class token, is read. A small head turns it into a label.
• Right half, the encoder block: "Norm", "Multi-Head Attention", an addition; "Norm", "MLP", an addition. Note that Norm comes before each block, with the plus signs after. That is the "pre-norm" arrangement, and it is Equations 2 and 3.

The phrase "out of the box" is also why we can check this paper so thoroughly. ViT-B/16 has the same layer count, hidden size, head count and MLP size as BERT-base (BERT Part 2), and the released code is a few hundred lines on top of a standard Transformer implementation.

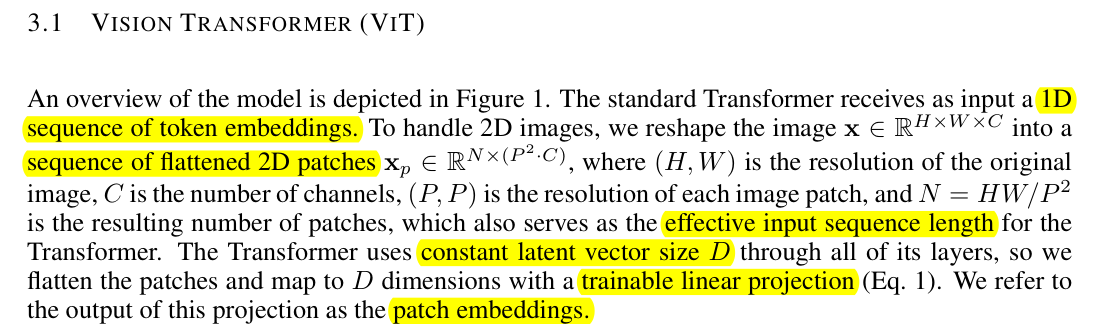

From pixels to a sequence: the reshape#

The arithmetic for our picture, with the paper's symbols:

where $H = W = 224$ is the resolution the model was trained at, $P = 16$ is the patch size (the "/16" in "ViT-B/16"), and $C = 3$ for red, green and blue. So the picture becomes $\mathbf{x}_p$, a matrix of 196 rows and 768 columns. A happy coincidence of ViT-B/16 at 224: the row length $P^2 C = 768$ equals $D = 768$, so $\mathbf{E}$ happens to be square. For ViT-B/32 the rows are $32 \cdot 32 \cdot 3 = 3{,}072$ long and $\mathbf{E}$ is $3{,}072 \times 768$.

Here is the picture we use, resized to 224×224 the way the released preprocessing does it, with the 14×14 patch grid drawn on top:

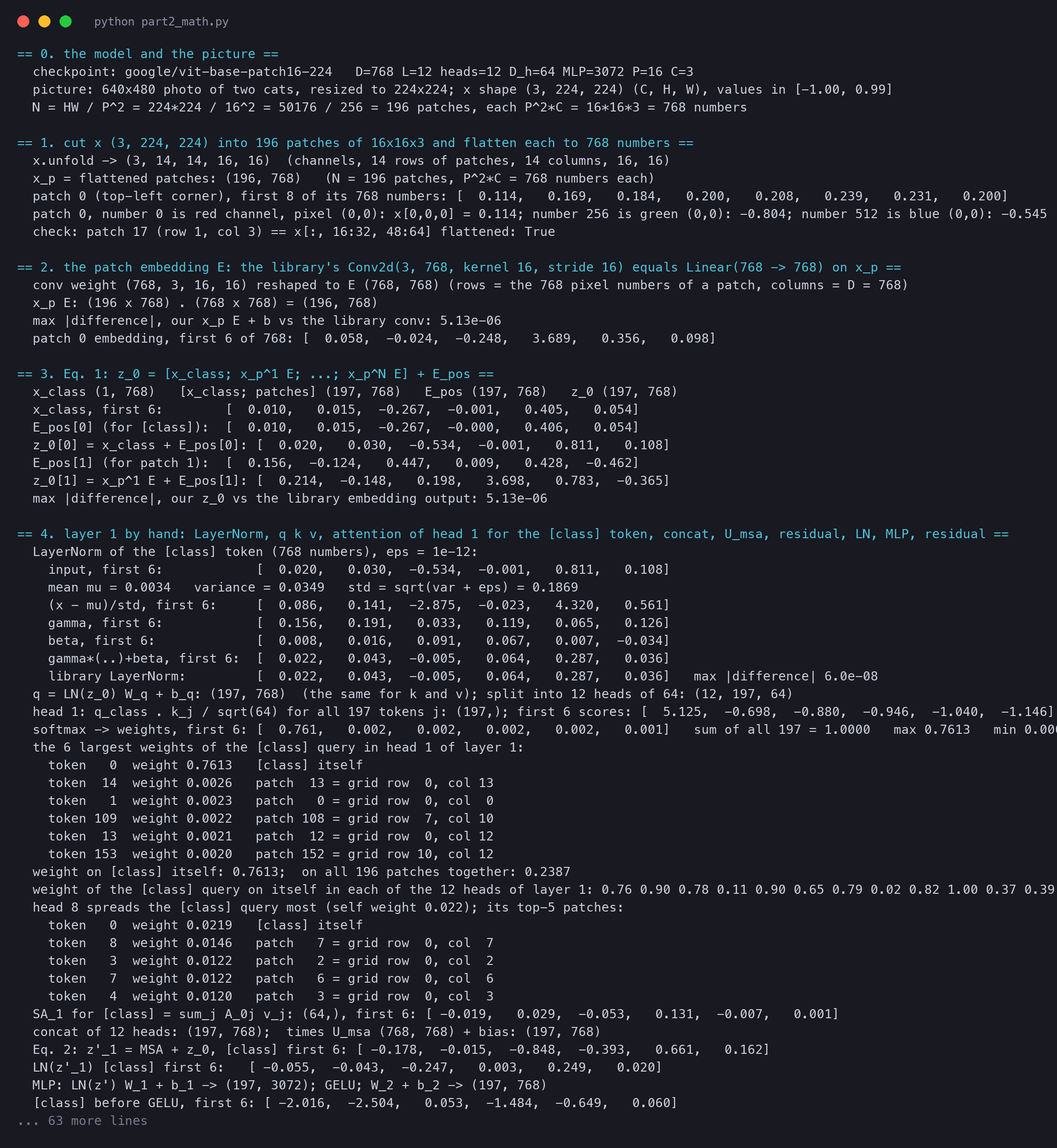

Cutting and flattening in PyTorch is three lines (vit_part2_math.py). unfold slides a 16-wide window with step 16 along the height and then the width, which gives one 16×16 square per patch and per channel; a permute and a reshape put the patches as rows:

patches = x.unfold(1, P, P).unfold(2, P, P)                      # (3, 14, 14, 16, 16)
patches = patches.permute(1, 2, 0, 3, 4).reshape(N, C * P * P)   # (196, 768): row n = patch n

== 1. cut x (3, 224, 224) into 196 patches of 16x16x3 and flatten each to 768 numbers ==
  x.unfold -> (3, 14, 14, 16, 16)  (channels, 14 rows of patches, 14 columns, 16, 16)
  x_p = flattened patches: (196, 768)   (N = 196 patches, P^2*C = 768 numbers each)
  patch 0 (top-left corner), first 8 of its 768 numbers: [  0.114,   0.169,   0.184,   0.200,   0.208,   0.239,   0.231,   0.200]
  patch 0, number 0 is red channel, pixel (0,0): x[0,0,0] = 0.114; number 256 is green (0,0): -0.804; number 512 is blue (0,0): -0.545
  check: patch 17 (row 1, col 3) == x[:, 16:32, 48:64] flattened: True

The numbers are pixel values after the released preprocessing: each channel is scaled from 0 to 255 into $[0, 1]$ and then mapped to $[-1, 1]$ by $(v - 0.5)/0.5$. The top-left pixel of our picture is reddish (red 0.114, green −0.804, blue −0.545), which is the sofa. The check on patch 17 confirms the order: patch $n$ sits at grid row $\lfloor n/14 \rfloor$ and column $n \bmod 14$, so patch 17 is row 1, column 3, and it is exactly the pixels x[:, 16:32, 48:64].

The projection $\mathbf{E}$. Each row of $\mathbf{x}_p$ is multiplied by the same matrix $\mathbf{E} \in \mathbb{R}^{(P^2 \cdot C) \times D}$. One matrix product does all 196 patches at once:

There is one small gap between the paper and the released code here, and it is worth closing. The paper says "linear projection". The released PyTorch model (and the authors' original code) implement it as a convolution with a 16×16 kernel and a stride of 16. These are the same operation: a convolution with kernel size equal to its stride touches each patch exactly once, and what it does to a patch is a dot product with each of its 768 filters, which is a linear layer. I checked by reshaping the convolution's weight into a $768 \times 768$ matrix and multiplying the flattened patches with it:

conv = model.vit.embeddings.patch_embeddings.projection    # Conv2d(3, 768, kernel_size=16, stride=16)
E = conv.weight.reshape(768, 768).T                        # (P²·C) × D: column d is filter d, flattened
ours = patches @ E + conv.bias                             # Eq. 1's x_p E, for all 196 patches
theirs = conv(pixel_values).flatten(2).transpose(1, 2)[0]  # what the library computes
print((ours - theirs).abs().max())

== 2. the patch embedding E: the library's Conv2d(3, 768, kernel 16, stride 16) equals Linear(768 -> 768) on x_p ==
  conv weight (768, 3, 16, 16) reshaped to E (768, 768) (rows = the 768 pixel numbers of a patch, columns = D = 768)
  x_p E: (196 x 768) . (768 x 768) = (196, 768)
  max |difference|, our x_p E + b vs the library conv: 5.13e-06
  patch 0 embedding, first 6 of 768: [  0.058,  -0.024,  -0.248,   3.689,   0.356,   0.098]

A difference of $5 \times 10^{-6}$ is rounding noise in 32-bit arithmetic. So "linear projection of flattened patches" and "16×16 convolution with stride 16" are two names for the same 589,824 weights. The convolution is simply the faster way to run it.

The [class] token and the head#

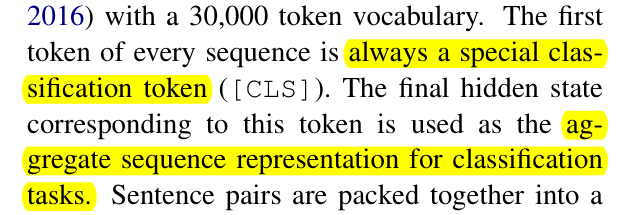

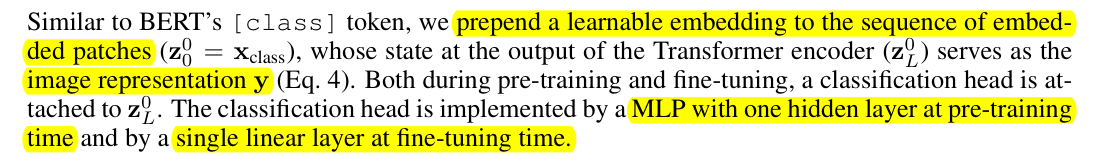

Here is the BERT sentence the paper points to:

The two heads can be seen in the released checkpoints. The fine-tuned model google/vit-base-patch16-224 ends in exactly one linear layer, and the pre-trained-only model google/vit-base-patch16-224-in21k ends in a dense layer with a tanh (a "pooler", the hidden layer of the pre-training MLP head; the 21,843-class output layer on top of it was not released):

  head of the fine-tuned checkpoint: Linear(in_features=768, out_features=1000, bias=True)   (one linear layer, as Section 3.1 says for fine-tuning)
  the pre-trained-only checkpoint google/vit-base-patch16-224-in21k ends in: ViTPooler(
  (dense): Linear(in_features=768, out_features=768, bias=True)
  (activation): Tanh()
)
  fine-tuned checkpoint has a pooler: False;  in21k checkpoint has a pooler: True
  (the paper: an MLP with one hidden layer at pre-training time, a single linear layer at fine-tuning time)

So the released files match the sentence: an MLP with one hidden layer for pre-training, one linear layer after fine-tuning. Part 3 covers how the head is swapped and why it starts from zeros.

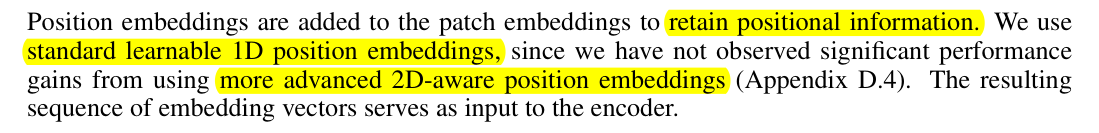

Position embeddings#

Why are they needed at all? Because self-attention treats its input as a set. Shuffle the input rows and the output rows shuffle in exactly the same way, with the same numbers. We check this on the tiny four-token example of the Appendix A section below (vit_part2_attn.py):

== permutation equivariance: shuffle the input rows, the output rows shuffle the same way ==
  new order of the tokens: ['t2', 't0', 't3', 't1']
  MSA(z shuffled)  shape (4, 6)      (MSA(z) in the original order is printed in the Appendix A section)
       t2  1.784  2.885  0.000 -0.442 -2.007 -1.173
       t0  1.510  0.045  0.000  0.070 -1.023 -0.240
       t3  2.091  1.299  0.000 -0.228 -1.766 -0.560
       t1  1.679  0.231  0.000 -0.155 -1.116 -0.110
  MSA(z shuffled) == MSA(z) with its rows shuffled the same way: True   (max |difference| 4.8e-07)
  so without position embeddings the model cannot tell where a patch came from: only the set of patches matters.
  with a position row added before attention (z + E_pos), the shuffled run no longer matches: max |difference| 3.875

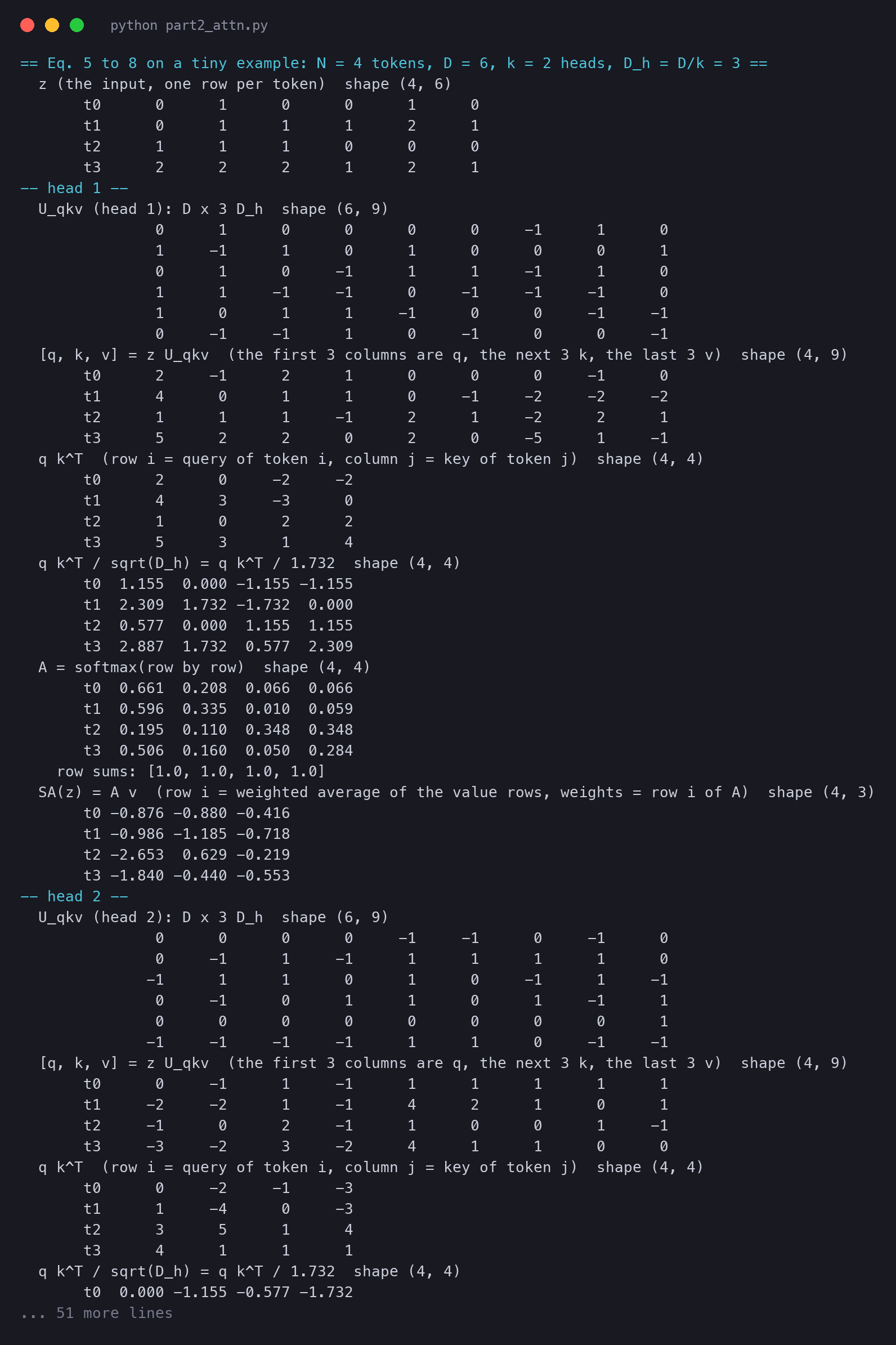

Compare with the original-order output in the Appendix A section: the rows for t2 and t0 swap places and nothing else changes. A model built only from attention and per-token MLPs would give the same class to a picture and to the same picture with its patches scrambled. Adding a different vector to each position breaks the tie: the shuffled run now differs by up to 3.875.

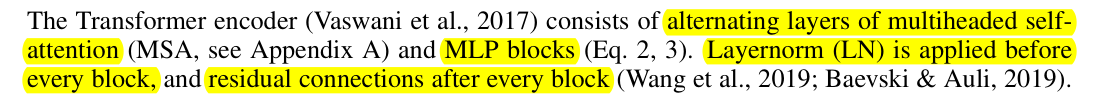

The encoder: LayerNorm, attention, MLP#

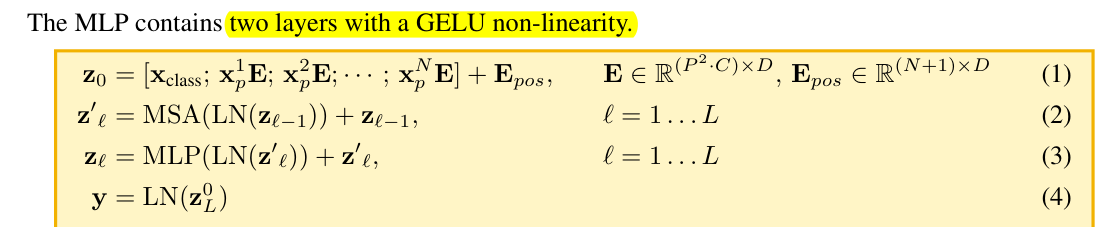

Equations 1 to 4, with the real numbers#

The four equations are the whole model. We take them in order and, for each, run the real ViT-B/16 on the cat picture by hand.

Equation 1: the input sequence#

The idea in one sentence: put the class token in front of the 196 projected patches, then add a position vector to each of the 197.

where:

• $\mathbf{x}_p^n$ is row $n$ of the patch matrix, the 768 pixel numbers of patch $n$ ($1 \times 768$);
• $\mathbf{E}$ is the projection, $768 \times 768$ here (the released model also adds a bias of 768, which the equation leaves out);
• $\mathbf{x}_p^n \mathbf{E}$ is the patch embedding of patch $n$, $1 \times 768$;
• $\mathbf{x}_{\text{class}}$ is the learned class token, $1 \times 768$;
• the square brackets stack the 197 rows into a $197 \times 768$ matrix;
• $\mathbf{E}_{pos}$ is the table of 197 learned position vectors, $197 \times 768$, added row by row: row 0 to the class token, row $n$ to patch $n$;
• $\mathbf{z}_0$ is the result, $197 \times 768$, the input of layer 1.

In code, with the library's own tables and our own patch embeddings from above:

emb = model.vit.embeddings
x_class = emb.cls_token.detach()[0]                 # (1, 768)
E_pos = emb.position_embeddings.detach()[0]         # (197, 768)
z0 = torch.cat([x_class, our_patch_emb], 0) + E_pos # (197, 768)   Eq. 1
print((z0 - emb(pixel_values)[0]).abs().max())      # against the library's embedding layer

== 3. Eq. 1: z_0 = [x_class; x_p^1 E; ...; x_p^N E] + E_pos ==
  x_class (1, 768)   [x_class; patches] (197, 768)   E_pos (197, 768)   z_0 (197, 768)
  x_class, first 6:        [  0.010,   0.015,  -0.267,  -0.001,   0.405,   0.054]
  E_pos[0] (for [class]):  [  0.010,   0.015,  -0.267,  -0.000,   0.406,   0.054]
  z_0[0] = x_class + E_pos[0]: [  0.020,   0.030,  -0.534,  -0.001,   0.811,   0.108]
  E_pos[1] (for patch 1):  [  0.156,  -0.124,   0.447,   0.009,   0.428,  -0.462]
  z_0[1] = x_p^1 E + E_pos[1]: [  0.214,  -0.148,   0.198,   3.698,   0.783,  -0.365]
  max |difference|, our z_0 vs the library embedding output: 5.13e-06

Check the second row by hand: patch 1's embedding started $0.058, -0.024, -0.248, 3.689, \dots$ (step 2 above); add $\mathbf{E}_{pos}[1] = 0.156, -0.124, 0.447, 0.009, \dots$ and you get $0.214, -0.148, 0.198, 3.698$, which is what the script prints. The class token and its position vector are a curiosity: in this checkpoint they are almost identical lists of numbers ($0.010, 0.015, -0.267, \dots$ in both), so $\mathbf{z}_0[0]$ is close to $2\,\mathbf{x}_{\text{class}}$. Nothing in the model requires that; the two vectors are only ever used as a sum, so training was free to split the sum between them any way it liked.

Equation 2: LayerNorm, attention, residual#

The idea in one sentence: normalise every token, let the tokens look at each other, and add the result back to what came in.

where:

• $\mathbf{z}_{\ell-1}$ is the output of the previous layer ($\mathbf{z}_0$ for the first), $197 \times 768$;
• $\text{LN}$ normalises each of the 197 rows on its own (formula below), shape unchanged;

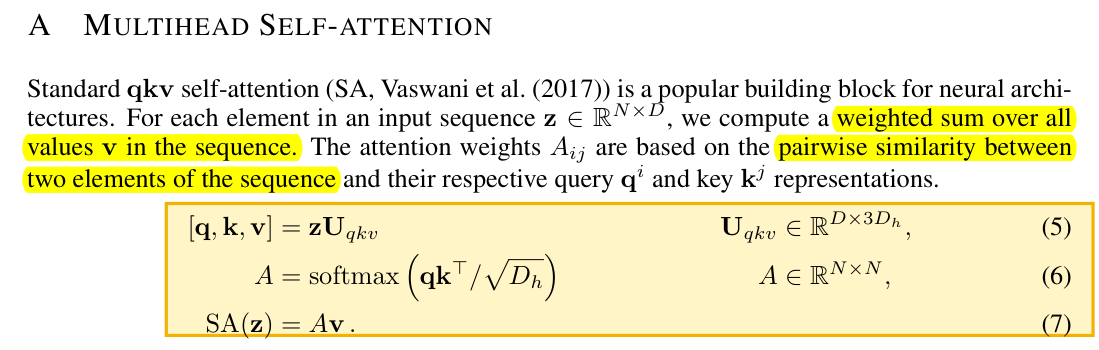

• $\text{MSA}$ is multi-head self-attention, Appendix A, $197 \times 768$ in and out;
• $+\ \mathbf{z}_{\ell-1}$ is the residual connection;
• $\mathbf{z}'_\ell$ is the intermediate result, $197 \times 768$, which Equation 3 continues; $L = 12$ for ViT-B.

LayerNorm by hand. For one token's vector $x$ of $D$ numbers:

where $\mu$ is the mean of the 768 numbers, $\sigma$ their standard deviation (with a tiny $\epsilon = 10^{-12}$ added so that it is never zero), and $\gamma, \beta$ are two learned vectors of 768 numbers, the same for every token. Here it is on the class token entering layer 1:

v = z0[0]                                                  # the [class] token, 768 numbers
ln = model.vit.layers[0].layernorm_before
mu, var = v.mean(), ((v - v.mean()) ** 2).mean()
ours = ln.weight * (v - mu) / torch.sqrt(var + 1e-12) + ln.bias

  LayerNorm of the [class] token (768 numbers), eps = 1e-12:
    input, first 6:            [  0.020,   0.030,  -0.534,  -0.001,   0.811,   0.108]
    mean mu = 0.0034   variance = 0.0349   std = sqrt(var + eps) = 0.1869
    (x - mu)/std, first 6:     [  0.086,   0.141,  -2.875,  -0.023,   4.320,   0.561]
    gamma, first 6:            [  0.156,   0.191,   0.033,   0.119,   0.065,   0.126]
    beta, first 6:             [  0.008,   0.016,   0.091,   0.067,   0.007,  -0.034]
    gamma*(..)+beta, first 6:  [  0.022,   0.043,  -0.005,   0.064,   0.287,   0.036]
    library LayerNorm:         [  0.022,   0.043,  -0.005,   0.064,   0.287,   0.036]   max |difference| 6.0e-08

Check the fifth number: $(0.811 - 0.0034)/0.1869 = 4.321$, then $0.065 \times 4.321 + 0.007 = 0.288$, against the printed 0.287 (the inputs shown are rounded). Notice how small $\gamma$ is here (0.03 to 0.19): the trained model scales the normalised numbers down a lot before attention sees them.

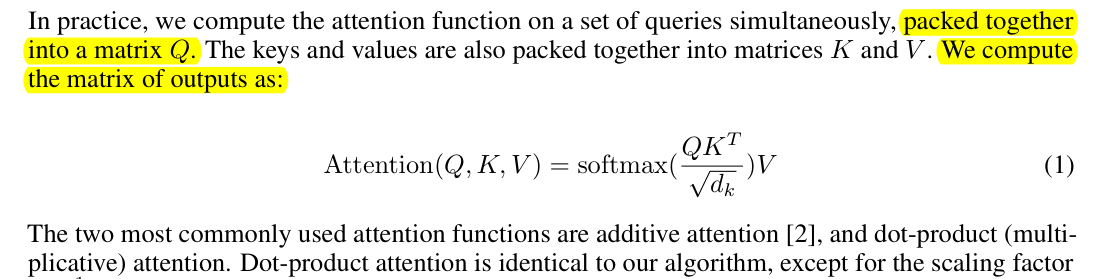

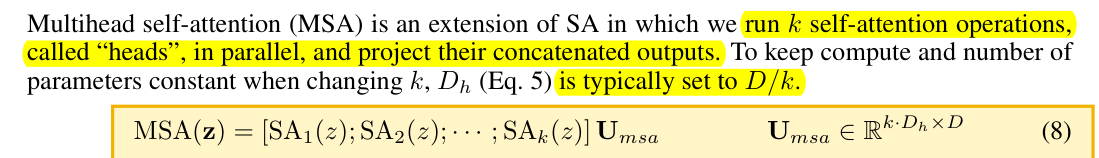

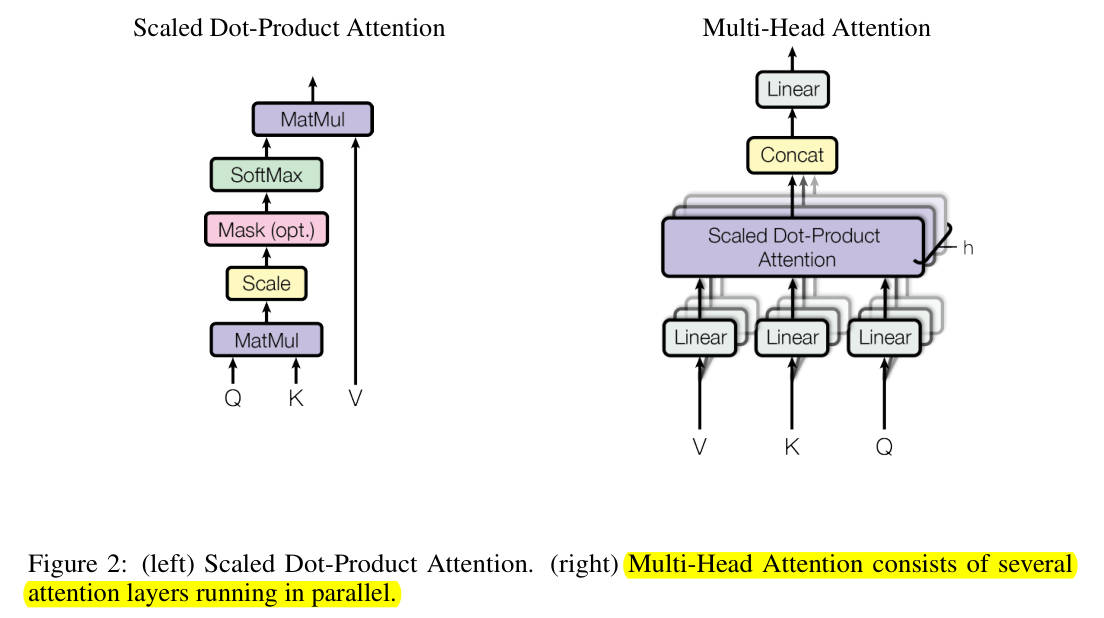

Attention, head by head. The normalised $197 \times 768$ matrix is multiplied by three matrices to give queries, keys and values, each $197 \times 768$, which are split into 12 heads of 64 columns. For each head, every token's query is compared with every token's key, the 197 scores are divided by $\sqrt{64} = 8$ and turned into weights by softmax, and the token's output is the weighted sum of the 197 value rows. The 12 outputs ($197 \times 64$ each) are placed side by side into $197 \times 768$ and multiplied by one more $768 \times 768$ matrix. Appendix A, at the end of this part, is the formal version; here is the real one, for the class token's query in head 1 of layer 1:

lay = model.vit.layers[0]; at = lay.attention
q = ln1 @ at.q_proj.weight.T + at.q_proj.bias          # (197, 768); the same for k and v
qh, kh, vh = (t.view(197, 12, 64).transpose(0, 1) for t in (q, k, v))   # (12, 197, 64)
scores = qh @ kh.transpose(1, 2) / 8.0                 # (12, 197, 197)
A = torch.softmax(scores, -1)                          # every row sums to 1
SA = A @ vh                                            # (12, 197, 64)
concat = SA.transpose(0, 1).reshape(197, 768)          # the 12 heads side by side
msa = concat @ at.o_proj.weight.T + at.o_proj.bias     # U_msa
z_prime = msa + z0                                     # Eq. 2

  q = LN(z_0) W_q + b_q: (197, 768)  (the same for k and v); split into 12 heads of 64: (12, 197, 64)
  head 1: q_class . k_j / sqrt(64) for all 197 tokens j: (197,); first 6 scores: [  5.125,  -0.698,  -0.880,  -0.946,  -1.040,  -1.146]
  softmax -> weights, first 6: [  0.761,   0.002,   0.002,   0.002,   0.002,   0.001]   sum of all 197 = 1.0000   max 0.7613   min 0.0005
  the 6 largest weights of the [class] query in head 1 of layer 1:
    token   0  weight 0.7613   [class] itself
    token  14  weight 0.0026   patch  13 = grid row  0, col 13
    token   1  weight 0.0023   patch   0 = grid row  0, col  0
    token 109  weight 0.0022   patch 108 = grid row  7, col 10
    token  13  weight 0.0021   patch  12 = grid row  0, col 12
    token 153  weight 0.0020   patch 152 = grid row 10, col 12
  weight on [class] itself: 0.7613;  on all 196 patches together: 0.2387
  weight of the [class] query on itself in each of the 12 heads of layer 1: 0.76 0.90 0.78 0.11 0.90 0.65 0.79 0.02 0.82 1.00 0.37 0.39
  head 8 spreads the [class] query most (self weight 0.022); its top-5 patches:
    token   0  weight 0.0219   [class] itself
    token   8  weight 0.0146   patch   7 = grid row  0, col  7
    token   3  weight 0.0122   patch   2 = grid row  0, col  2
    token   7  weight 0.0122   patch   6 = grid row  0, col  6
    token   4  weight 0.0120   patch   3 = grid row  0, col  3

Two things are worth noticing. First, the score of the class token against itself is 5.125 while the others are around −1, and after softmax that one score takes 0.761 of the weight. Head 1 of layer 1 mostly leaves the class token alone. The same is true of most heads in this layer (0.65 to 1.00 on itself); only heads 4, 8, 11 and 12 look outward. Second, when a head does look outward, as head 8 does, no patch gets much: the largest weight is 0.0146, and the five largest all sit in the top row of the picture (the red sofa behind the cats). This is layer 1; there is no "cat detector" yet. Part 5 measures how far the heads look in every layer and shows that later layers attend to the object.

The weighted sum, the join of the heads, the output matrix and the residual, still for the class token:

  SA_1 for [class] = sum_j A_0j v_j: (64,), first 6: [ -0.019,   0.029,  -0.053,   0.131,  -0.007,   0.001]
  concat of 12 heads: (197, 768);  times U_msa (768, 768) + bias: (197, 768)
  Eq. 2: z'_1 = MSA + z_0, [class] first 6: [ -0.178,  -0.015,  -0.848,  -0.393,   0.661,   0.162]

Equation 3: LayerNorm, MLP, residual#

The idea in one sentence: normalise again, push every token through the same small two-layer network, and add the result back.

where:

• $\mathbf{z}'_\ell$ is the output of Equation 2, $197 \times 768$;
• $\text{LN}$ is a second LayerNorm with its own $\gamma, \beta$;
• $\text{MLP}(x) = \text{GELU}(x W_1 + b_1)\, W_2 + b_2$ with $W_1$ of $768 \times 3{,}072$ and $W_2$ of $3{,}072 \times 768$, applied to each of the 197 rows separately;
• $\mathbf{z}_\ell$ is the output of layer $\ell$, $197 \times 768$, the input of the next layer.

And GELU itself, number by number:

where $\Phi(x)$ is the probability that a standard normal random number is below $x$: close to 0 for very negative $x$, 0.5 at 0, close to 1 for large $x$. So GELU keeps a number roughly in proportion to how "positive" it is. The script computes it from torch.erf and compares with the library's F.gelu:

  GELU(x) = x * Phi(x) at a few values, against torch.nn.functional.gelu:
    x:                 -3.00   -2.00   -1.00   -0.50    0.00    0.50    1.00    2.00    3.00
    Phi(x):           0.0013  0.0228  0.1587  0.3085  0.5000  0.6915  0.8413  0.9772  0.9987
    x*Phi(x):        -0.0040 -0.0455 -0.1587 -0.1543  0.0000  0.3457  0.8413  1.9545  2.9960
    F.gelu(x):       -0.0040 -0.0455 -0.1587 -0.1543  0.0000  0.3457  0.8413  1.9545  2.9960
    relu(x):          0.0000  0.0000  0.0000  0.0000  0.0000  0.5000  1.0000  2.0000  3.0000

$\text{GELU}(-1) = -1 \times 0.1587 = -0.159$, not 0 as ReLU would give; $\text{GELU}(2) = 2 \times 0.9772 = 1.955$, almost the 2 of ReLU. The two agree exactly with the library's function. Now the MLP on the class token in layer 1:

ln2 = lay.layernorm_after(z_prime)                               # second LayerNorm, own gamma and beta
h = ln2 @ lay.mlp.fc1.weight.T + lay.mlp.fc1.bias                # (197, 3072)
mlp = gelu_exact(h) @ lay.mlp.fc2.weight.T + lay.mlp.fc2.bias    # (197, 768)
z1 = mlp + z_prime                                               # Eq. 3

  LN(z'_1) [class] first 6:   [ -0.055,  -0.043,  -0.247,   0.003,   0.249,   0.020]
  MLP: LN(z') W_1 + b_1 -> (197, 3072); GELU; W_2 + b_2 -> (197, 768)
  [class] before GELU, first 6: [ -2.016,  -2.504,   0.053,  -1.484,  -0.649,   0.060]
  [class] after GELU, first 6:  [ -0.044,  -0.015,   0.028,  -0.102,  -0.168,   0.031]
  share of the 3072 numbers that are positive before GELU ([class]): 0.071
  Eq. 3: z_1 = MLP + z'_1, [class] first 6: [ -0.212,  -0.046,  -0.840,  -0.748,   0.774,   0.083]
  max |difference|, our z_1 vs the library hidden_states[1]: 6.68e-06
  max |difference|, our head-1 weights vs the library attentions[0] (all 12 heads): 2.68e-06

Only 7.1% of the 3,072 hidden numbers of the class token are positive before GELU in this layer; most of the wide hidden layer is "off" for this token, and the off numbers come out small but not zero ($-2.016 \to -0.044$). Our $\mathbf{z}_1$ matches the library's output of layer 1 to $6.7 \times 10^{-6}$, and our attention weights match its weights to $2.7 \times 10^{-6}$. So Equations 2 and 3, as written above, are the complete layer.

All twelve layers. The same two equations run 12 times, each layer with its own weights. Our loop against the library, layer by layer:

== 5. all 12 layers, our loop vs the library ==
  layer  1: z_1 (197, 768)   max |difference| vs hidden_states[1]: 6.68e-06   (largest value in z_1:    21.2, so relative 3.1e-07)
  layer  2: z_2 (197, 768)   max |difference| vs hidden_states[2]: 8.34e-06   (largest value in z_2:    23.7, so relative 3.5e-07)
  layer  3: z_3 (197, 768)   max |difference| vs hidden_states[3]: 9.54e-06   (largest value in z_3:    24.1, so relative 4.0e-07)
  layer  4: z_4 (197, 768)   max |difference| vs hidden_states[4]: 8.39e-05   (largest value in z_4:    56.0, so relative 1.5e-06)
  layer  5: z_5 (197, 768)   max |difference| vs hidden_states[5]: 9.16e-04   (largest value in z_5:   336.9, so relative 2.7e-06)
  layer  6: z_6 (197, 768)   max |difference| vs hidden_states[6]: 1.50e-03   (largest value in z_6:   989.2, so relative 1.5e-06)
  ... (layers 7 to 11: 1.65e-03 to 1.77e-03, relative 1.0e-06 to 1.1e-06)
  layer 12: z_12 (197, 768)   max |difference| vs hidden_states[12]: 1.83e-03   (largest value in z_12:  1699.6, so relative 1.1e-06)
  the final logits from our z_12 vs the library differ by at most 2.86e-06 (see step 6)

An honesty note on the numbers in the middle column: the absolute difference grows from $7 \times 10^{-6}$ in layer 1 to $1.8 \times 10^{-3}$ in layer 12. That is not a bug in the equations. The residual stream of a trained ViT contains a few enormous values (the largest number in $\mathbf{z}_{12}$ is about 1,700, against 21 in $\mathbf{z}_1$), and 32-bit floating point keeps about seven significant digits, so the rounding noise grows with the values. Relative to the largest value the difference stays at about $10^{-6}$ in every layer, and the final class scores agree to $3 \times 10^{-6}$.

Equation 4: the image representation#

The idea in one sentence: after the last layer, normalise the class token one more time; that vector is the picture.

where $\mathbf{z}_L^0$ is row 0 (the class token) of the last layer's output, 768 numbers, and $\text{LN}$ is a final LayerNorm with its own $\gamma, \beta$. $\mathbf{y}$, also 768 numbers, is the image representation. The 196 patch rows of $\mathbf{z}_L$ are computed and then ignored. The head is not in the equation; in the fine-tuned model it is $\text{logits} = \mathbf{y}\,W_{\text{head}} + b_{\text{head}}$ with $W_{\text{head}}$ of $768 \times 1000$:

y = model.vit.layernorm(zL[0])                                 # Eq. 4, 768 numbers
logits = y @ model.classifier.weight.T + model.classifier.bias # (1000,)
probs = torch.softmax(logits, -1)

== 6. Eq. 4: y = LN(z_L^0), then the classification head ==
  z_L^0 (the [class] token after 12 layers), first 6: [  2.313,   5.512,  11.788,   0.577,   6.548,  -2.913]   mean 0.073 var 34.490
  y = LN(z_L^0), first 6: [  0.294,   0.835,   1.904,   0.081,   1.039,  -0.518]   max |difference| vs the library: 3.81e-06
  head of the fine-tuned checkpoint: Linear(in_features=768, out_features=1000, bias=True)   (one linear layer, as Section 3.1 says for fine-tuning)
  logits = y W_head + b: (1000,)   max |difference| vs model.logits: 2.86e-06
  top-5 ImageNet classes:
     0.937  class 285  Egyptian cat
     0.038  class 281  tabby, tabby cat
     0.014  class 282  tiger cat
     0.003  class 287  lynx, catamount
     0.001  class 284  Siamese cat, Siamese

The model says "Egyptian cat" with probability 0.937, and the next four guesses are all cats. Everything from the 50,176 pixels to this answer was computed above with nothing but matrix multiplications, LayerNorm, softmax and GELU, and matched the library at every step.

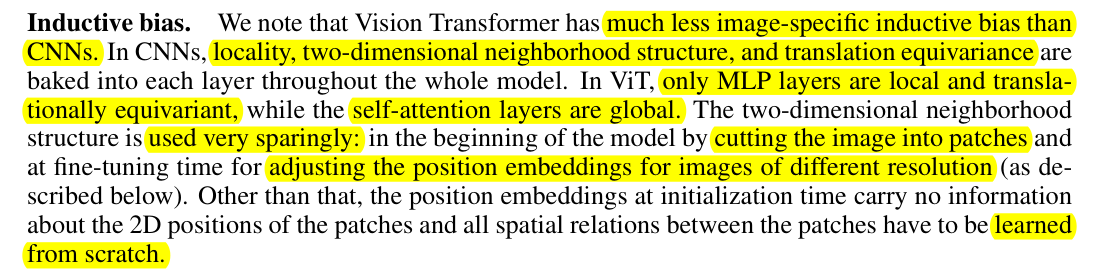

Inductive bias#

The paragraph's two claims about ViT are easy to confirm from what we computed. The MLP is "local and translationally equivariant" because it acts on one token at a time with the same $W_1, W_2$ for every token; the attention is "global" because every row of the $197 \times 197$ matrix had a non-zero weight for every column (the smallest weight in the class token's row was 0.0005, not 0). And the position embeddings carry no 2D information at the start because they are 197 independent learnable rows; nothing in Equation 1 says that row 15 is below row 1.

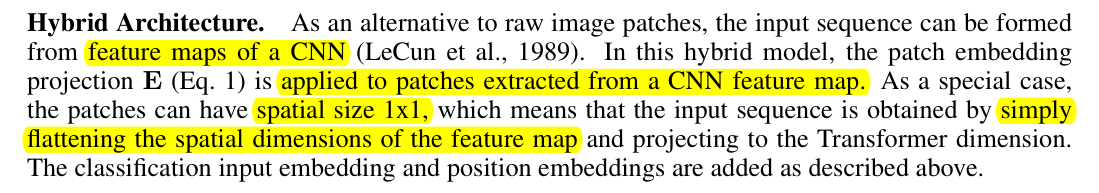

Hybrid architecture#

In shapes: a ResNet turns the $224 \times 224 \times 3$ picture into a $14 \times 14 \times 1{,}024$ feature map (with the extended-stage-3 option the paper pairs with ViT-B/16). Reading each position as a $1 \times 1$ "patch" gives $N = 196$ tokens of $1{,}024$ numbers, so $\mathbf{E}$ becomes $1{,}024 \times 768$ and everything from Equation 1 on is unchanged. The sequence length is the same 196 as ViT-B/16, which is why the paper pairs them.

Table 1, as far as this part needs it#

The next part reads the experimental setup in full. We need one table from it now, because every number above (768, 12, 3,072) came from it:

Where the 86 million parameters come from#

Every piece of the model above has a known shape, so the count is a formula. For hidden size $D$, $L$ layers, MLP size $4D$, patch size $P$, $C$ channels, $N$ patches and $K$ classes:

The per-layer part simplifies to $12D^2 + 13D$. Each term, for ViT-B/16 at 224 with $K = 1{,}000$:

• patch embedding: $16 \cdot 16 \cdot 3 \cdot 768 + 768 = 590{,}592$;
• class token: $768$; positions: $197 \times 768 = 151{,}296$;
• attention per layer: $4 \times (768^2 + 768) = 2{,}362{,}368$ (four $768 \times 768$ matrices with biases);
• MLP per layer: $768 \cdot 3{,}072 + 3{,}072 + 3{,}072 \cdot 768 + 768 = 4{,}722{,}432$;
• two LayerNorms per layer: $4 \times 768 = 3{,}072$; so one layer is $7{,}087{,}872$ and twelve are $85{,}054{,}464$;
• final LayerNorm: $1{,}536$; head: $768 \times 1{,}000 + 1{,}000 = 769{,}000$.

The script evaluates the formula and counts the real model's parameters. For ViT-L/16 and ViT-H/14 it builds the model from its configuration on PyTorch's "meta" device, which creates every tensor's shape without allocating any memory, so no weights are needed:

def formula(D, L, P, C, N, K, mlp=None):
    mlp = mlp or 4 * D
    return (P * P * C * D + D) + D + (N + 1) * D + L * (4 * (D * D + D) + D * mlp + mlp + mlp * D + D + 4 * D) + 2 * D + (D * K + K)

c = ViTConfig(hidden_size=1280, num_hidden_layers=32, num_attention_heads=16, intermediate_size=5120, patch_size=14, num_labels=1000)
with torch.device('meta'):                       # shapes only, no memory for weights
    huge = ViTForImageClassification(c)
print(sum(p.numel() for p in huge.parameters()))

== 7. counting the parameters ==
  formula: (P^2 C D + D) + D + (N+1) D + L (12 D^2 + 13 D) + 2 D + (D K + K)
           patch emb       cls  position  L layers            LN   head
  ViT-B/16 at 224, K = 1000:
    patch embedding      590,592   [class]    768   positions   151,296
    one layer: attention 4(D^2 + D) = 2,362,368   MLP 8D^2 + 5D = 4,722,432   2 LayerNorms 4D = 3,072   -> 7,087,872   x 12 = 85,054,464
    final LayerNorm 1,536   head D K + K = 769,000
    formula total 86,567,656   counted in model.parameters() 86,567,656   same: True
    without the 1000-class head: 85,798,656   (paper, Table 1: 86M)
    where they sit: attention 28.35M (32.7%)   mlp 56.67M (65.5%)   embeddings 0.74M (0.9%)   layernorms 0.04M (0.0%)   head 0.77M (0.9%)
  ViT-L/16 at 224 (meta device, no weights): D=1024 L=24 heads=16 MLP=4096 N=196
    formula 304,326,632   counted 304,326,632   same: True
    with the 1000-class head 304.3M, without it 303.3M   (paper: 307M)
  ViT-H/14 at 224 (meta device, no weights): D=1280 L=32 heads=16 MLP=5120 N=256
    formula 632,045,800   counted 632,045,800   same: True
    with the 1000-class head 632.0M, without it 630.8M   (paper: 632M)

The formula matches the counted parameters exactly for all three sizes: 86,567,656 for ViT-B/16 with its 1,000-class head, 304,326,632 for ViT-L/16 and 632,045,800 for ViT-H/14. Compared with Table 1: ViT-Base rounds to 86M with or without the head (85.8M or 86.6M). ViT-Huge rounds to 632M with a 1,000-class head (632.0M; without it, 630.8M), so Table 1's figure for Huge appears to include a head of that size. ViT-Large is the odd one: we get 303.3M or 304.3M, and the paper says 307M. An honesty note: the 3M gap is real and we cannot explain it from the model's configuration (ViT-L/16 at 384 pixels has 577 position rows instead of 197, which adds only 0.4M; the 21,843-class ImageNet-21k head would add 22M, far too much). The released ViT-L/16 checkpoints have 304M parameters, so we trust the count and flag the table.

Two things stand out. The embeddings are tiny: 0.9% of the model, against about a fifth for BERT-base, because BERT carries a 30,522-row vocabulary table and ViT carries one $768 \times 768$ matrix. And two thirds of ViT is MLP, one third attention; the ratio $8D^2 : 4D^2$ is fixed by the $4D$ MLP width and is the same for every Transformer with that width.

Appendix A: the attention equations#

The paper keeps the attention formulas out of the main text and puts them in Appendix A. They are the inside of the "MSA" box above.

Equations 5 to 7: one head#

The idea: from the same input compute queries, keys and values; score every pair; turn scores into weights; average the values with those weights.

where:

• $\mathbf{z}$ is the (normalised) input, $N \times D$: 197 × 768 in ViT-B;
• $\mathbf{U}_{qkv}$ is one matrix of $D \times 3D_h$ that produces all three at once; $\mathbf{q}, \mathbf{k}, \mathbf{v}$ are each $N \times D_h$ (197 × 64). The released model stores it as three separate $768 \times 768$ matrices covering all 12 heads, which is the same numbers arranged differently, plus biases the equation omits;
• $\mathbf{q}\mathbf{k}^\top$ is $N \times N$: entry $(i, j)$ is the dot product of query $i$ with key $j$;
• $\sqrt{D_h}$ is 8 for $D_h = 64$; dividing keeps the scores from growing with the head size, so softmax does not saturate (BERT Part 2 measures why);
• softmax is applied to each row, so row $i$ holds the 197 weights of token $i$ and they add up to 1;
• $A\,\mathbf{v}$ is $N \times D_h$: row $i$ is the weighted average of all value rows, with token $i$'s weights.

This is Vaswani et al.'s Equation 1 with different letters:

A worked example small enough to check with a pencil. Four tokens, $D = 6$, two heads, so $D_h = 3$, with small whole numbers chosen so the sums stay short (vit_part2_attn.py). Head 1:

== Eq. 5 to 8 on a tiny example: N = 4 tokens, D = 6, k = 2 heads, D_h = D/k = 3 ==
  z (the input, one row per token)  shape (4, 6)
       t0      0      1      0      0      1      0
       t1      0      1      1      1      2      1
       t2      1      1      1      0      0      0
       t3      2      2      2      1      2      1
-- head 1 --
  U_qkv (head 1): D x 3 D_h  shape (6, 9)
               0      1      0      0      0      0     -1      1      0
               1     -1      1      0      1      0      0      0      1
               0      1      0     -1      1      1     -1      1      0
               1      1     -1     -1      0     -1     -1     -1      0
               1      0      1      1     -1      0      0     -1     -1
               0     -1     -1      1      0     -1      0      0     -1
  [q, k, v] = z U_qkv  (the first 3 columns are q, the next 3 k, the last 3 v)  shape (4, 9)
       t0      2     -1      2      1      0      0      0     -1      0
       t1      4      0      1      1      0     -1     -2     -2     -2
       t2      1      1      1     -1      2      1     -2      2      1
       t3      5      2      2      0      2      0     -5      1     -1
  q k^T / sqrt(D_h) = q k^T / 1.732  shape (4, 4)   (row i = query of token i, column j = key of token j)
       t0  1.155  0.000 -1.155 -1.155
       t1  2.309  1.732 -1.732  0.000
       t2  0.577  0.000  1.155  1.155
       t3  2.887  1.732  0.577  2.309
  A = softmax(row by row)  shape (4, 4)
       t0  0.661  0.208  0.066  0.066
       t1  0.596  0.335  0.010  0.059
       t2  0.195  0.110  0.348  0.348
       t3  0.506  0.160  0.050  0.284
    row sums: [1.0, 1.0, 1.0, 1.0]
  SA(z) = A v  (row i = weighted average of the value rows, weights = row i of A)  shape (4, 3)
       t0 -0.876 -0.880 -0.416
       t1 -0.986 -1.185 -0.718
       t2 -2.653  0.629 -0.219
       t3 -3.014  0.002 -0.995

Follow one number through. Row t0 of $\mathbf{z}$ is $(0, 1, 0, 0, 1, 0)$, so its query is the sum of rows 2 and 5 of $\mathbf{U}_{qkv}$'s first three columns: $(1, -1, 1) + (1, 0, 1) = (2, -1, 2)$, as printed. Its score against its own key $(1, 0, 0)$ is $2 \cdot 1 + (-1) \cdot 0 + 2 \cdot 0 = 2$; divided by $\sqrt{3} = 1.732$ that is 1.155. Softmax over the row $(1.155, 0, -1.155, -1.155)$:
